Pro-Quenchometer
World's First Fully Automated Probe Transfer System
The Pro-Quenchometer is our flagship cooling curve analysis system, designed for precision testing of quench oils and polymer quenchants. With our patented automated probe transfer mechanism, achieve unmatched repeatability and accuracy.
Overview
The Pro-Quenchometer represents the pinnacle of quenchant testing technology. Developed by ProVaC Manufacturing Technologies, this system incorporates the world's first fully automated probe transfer system, ensuring consistent and repeatable cooling curve measurements.
Designed for compliance with ASTM D6200, ISO 9950, and CQI-9 standards, the Pro-Quenchometer is trusted by quench oil manufacturers, heat treatment companies, and metallurgical laboratories worldwide.
Applications
- Quench oil quality control
- Polymer quenchant evaluation
- Heat treatment process optimization
- R&D and product development
- Incoming material inspection
- CQI-9 compliance testing
Expand Your System
Enhance the Pro-Quenchometer with purpose-built addons for complete automation, polymer testing, and calibration.

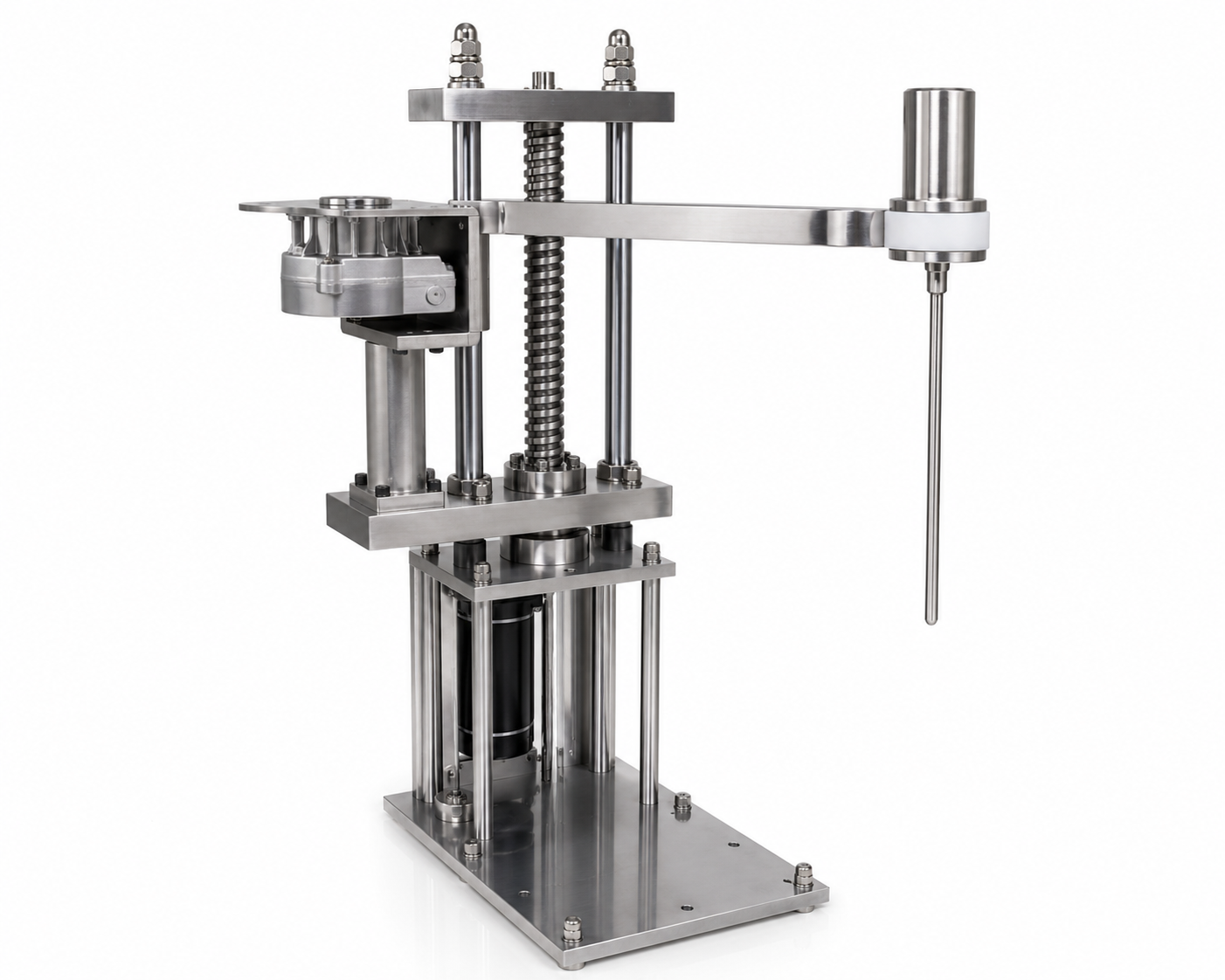

Automatic Transfer Mechanism
- Automated, operator-independent probe transfer via electro-mechanical system
- Transfers within 3 seconds as per ASTM standards
- All sub-systems mounted on a compact base plate
- World-first safety feature — eliminates hot-probe handling

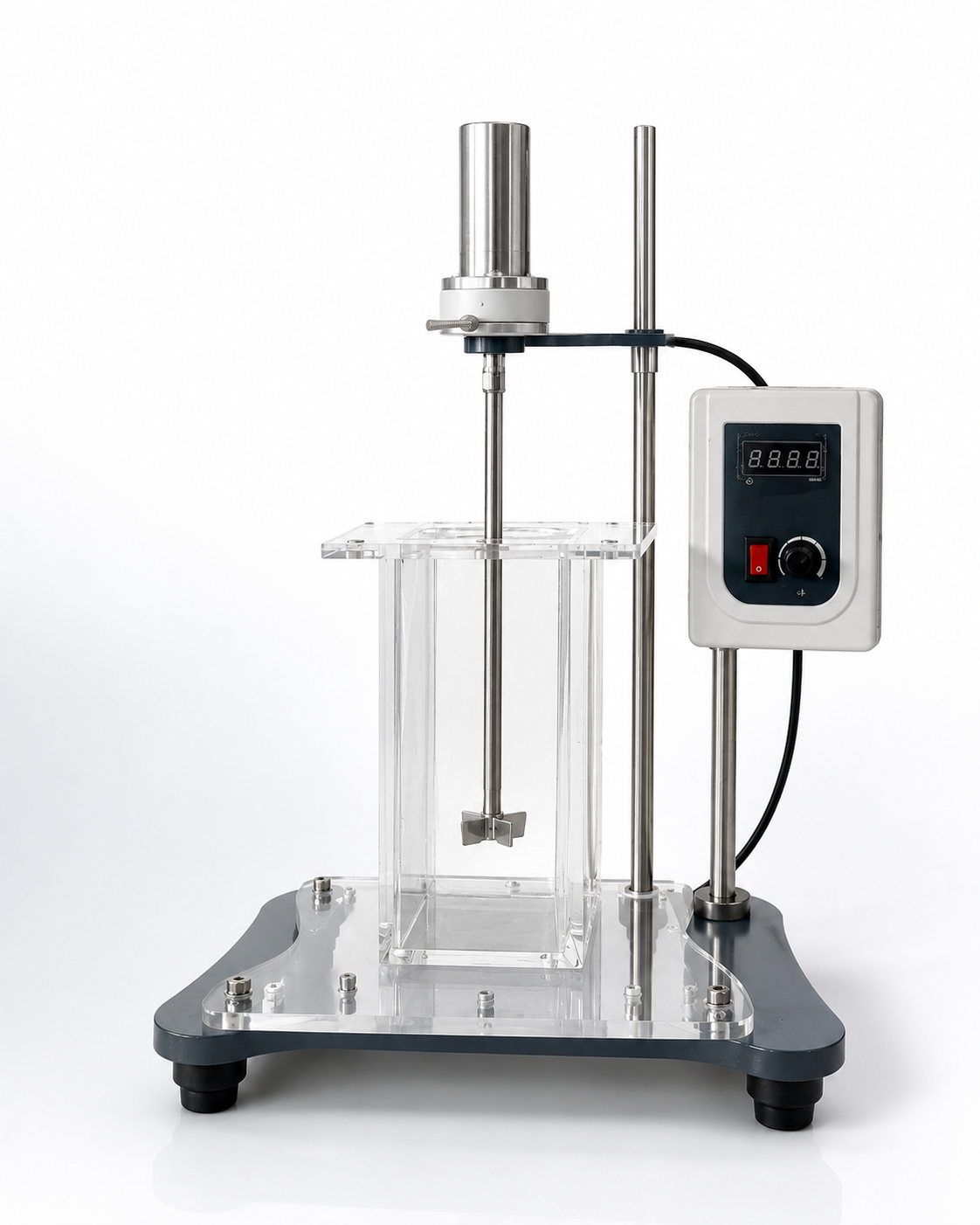

Quenchant Agitation System
- Tensi agitation assembly per ASTM D6482-06
- Facility to control and measure impeller speed
- Same standard probe usable for both oil and polymer quenchants
Reference Inconel Standard Probe
- NABL-traceable Inconel reference probe
- Direct spare/replacement for the standard probe
- Recommended for calibration verification on high-usage sites
What Sets It Apart
Quench Probe & Thermocouple
ASTM D6200-01 / D6200-21 standard design probe with integrated precision thermocouple for accurate temperature measurement throughout the cooling process.
Heating Furnace
Vertical tube-type furnace rated 850–900°C with ±5.0°C stability over 80mm working zone. Features a digital controller and easy coil maintenance access.
Quench Vessel
2-litre stainless steel vessel, 115±5mm diameter, engineered to maintain 50ml of quench fluid above and below the probe — exactly as specified by ASTM D6200 and ISO 9950.
Data Acquisition System
USB-based acquisition with precise timestamps, capturing 5 readings per second in full compliance with ASTM standards for cooling curve resolution.
Pro-Quench Analysis Software
Calculates all critical cooling parameters automatically. Generates automated ASTM-compliant reports. Available as a single-user license for Windows and macOS.
Automatic Probe Transfer Mechanism
World's first automated, operator-independent transfer of the heated probe to the quench vessel via an electro-mechanical system. Completes transfer within 3 seconds per ASTM standards.
Specifications
