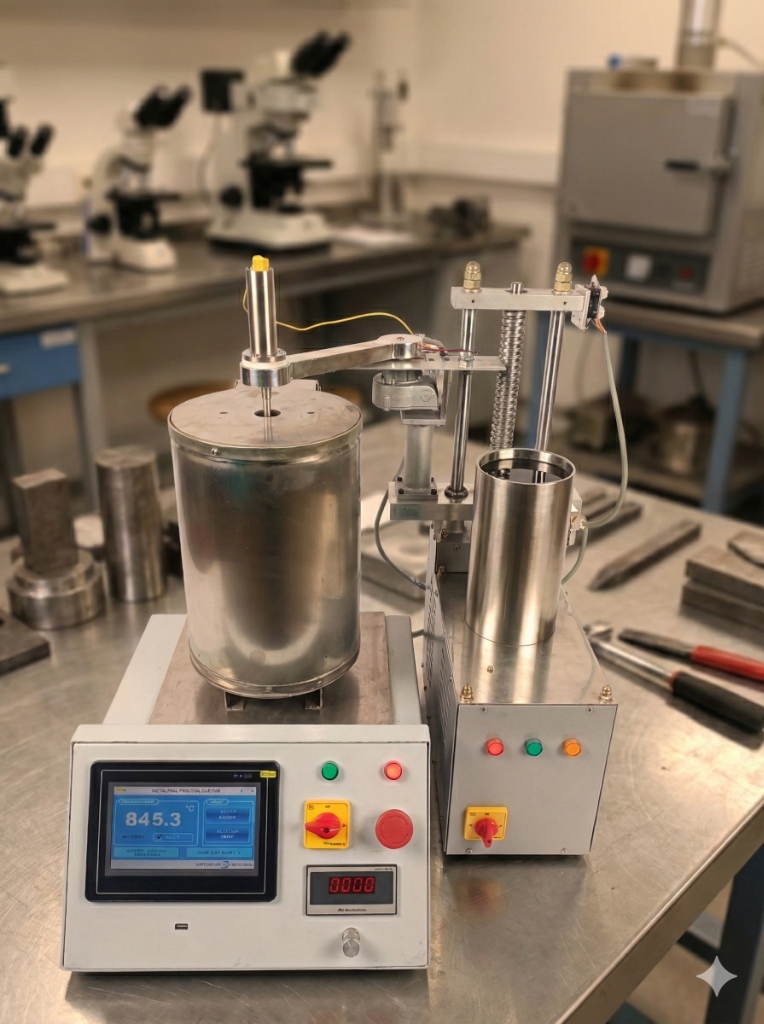

Precision Quenchometer Systems

Industry-leading quenchometer with world's first fully automated probe transfer system. Designed for precision cooling curve analysis as per ASTM D6200 and ISO 9950 standards.

• World's first automatic probe transfer (3 sec transfer)
• ASTM D6200-01 / D6200-21 & ISO 9950:1995 compliant
• 2L quench vessel, 115±5mm diameter, stainless steel
• Vertical tube furnace 850–900°C, ±5.0°C stability
• USB data acquisition — 5 readings/sec
• Includes Pro-Quench software (Windows & macOS)

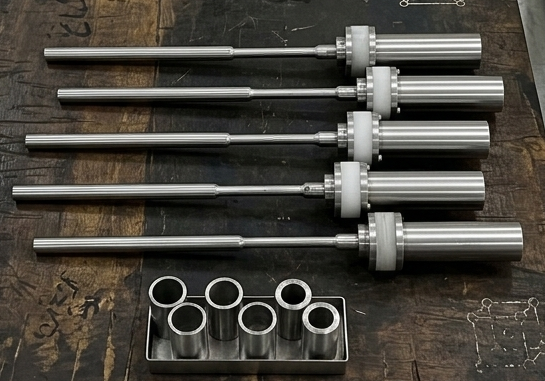

Precision-engineered Inconel (nickel-alloy) probes for accurate and repeatable quenchant testing. Designed to meet ASTM and ISO test method requirements.

• NABL-traceable Inconel reference standard probe
• ASTM D6200 / ISO 9950 compliant geometry
• Direct spare/replacement for standard probe
• K-factor calibration certificate included
• Recommended for calibration verification on high-usage sites

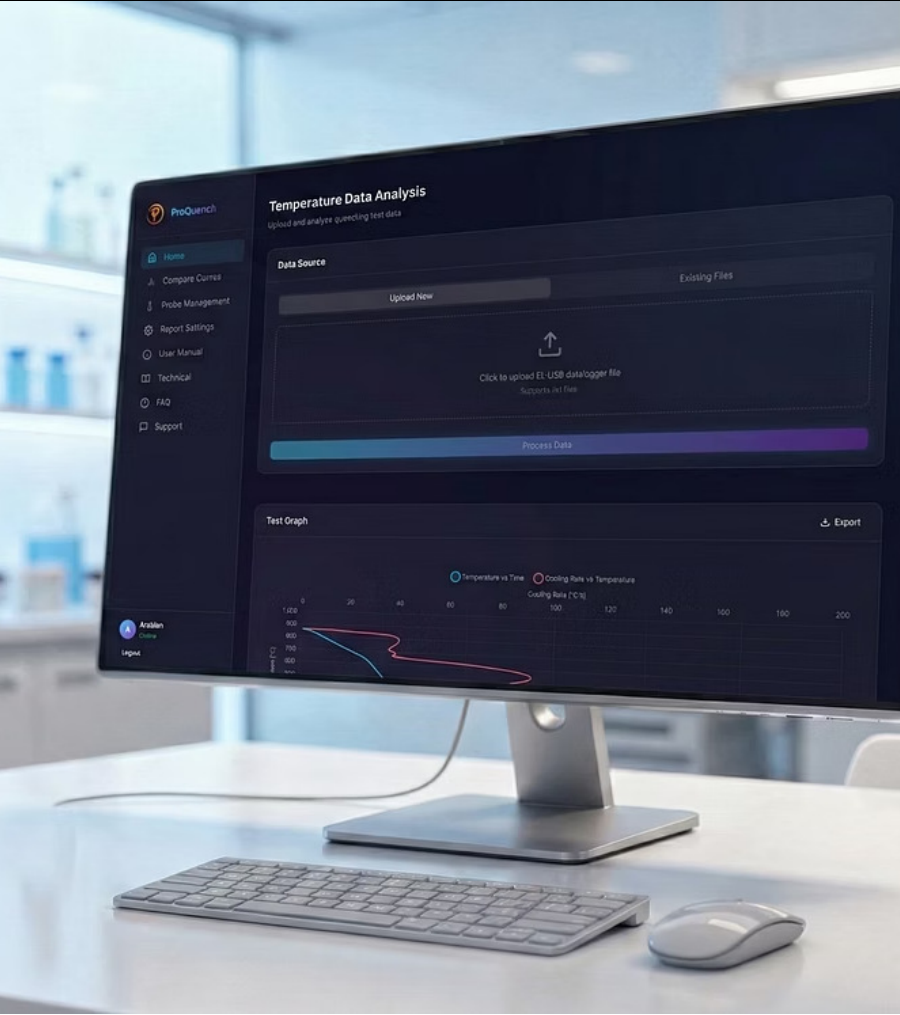

Comprehensive desktop application for quenchant characterization — from real-time cooling curve analysis and historical comparisons to multi-curve overlays, probe management, and professional PDF reporting.

• ASTM D6200-01 & ISO 9950:1995 compliant
• Auto-calculate CRmax, Tvp, Tcp, HP & more
• Historical cooling rate range comparison
• Compare up to 10 curves simultaneously
• Probe management with K-factor tracking
• Windows & macOS — MAC address licensing
